Fully Customized Semi-auto Filter Pleating Machine Industrial Filtration Solutions and Long-term Operation

1
MOQ
8000-10000
Preis
Fully Customized Semi-auto Filter Pleating Machine Industrial Filtration Solutions and Long-term Operation
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Stromquelle: Elektrisch
Maschinenprüfbericht: Bereitgestellt
Garantiezeit: 1 Jahr
Dimension: 1800*1900*1650mm (L*B*H)
Computerisiert: Ja
Produktursprung: Bengbu Anhui China
Hervorheben:

semi-auto filter pleating machine

,

industrial filtration pleating machine

,

customized air filter production machine
Grundinformation
Herkunftsort: Anhui Bengbu
Markenname: Bengbu Tongchen
Modellnummer: TCFH-700
Zahlung und Versand AGB
Verpackung Informationen: Holzkiste
Lieferzeit: 15-45 Tage
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: Unbegrenzte Versorgung
Produkt-Beschreibung

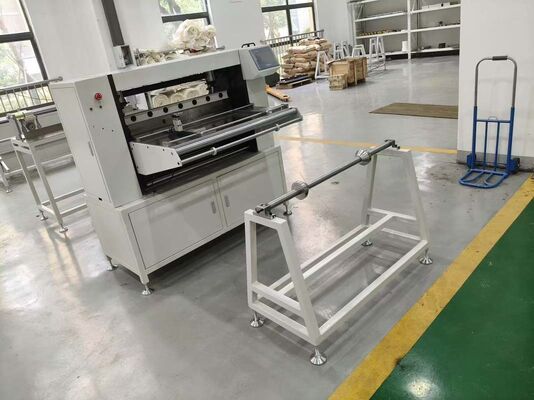

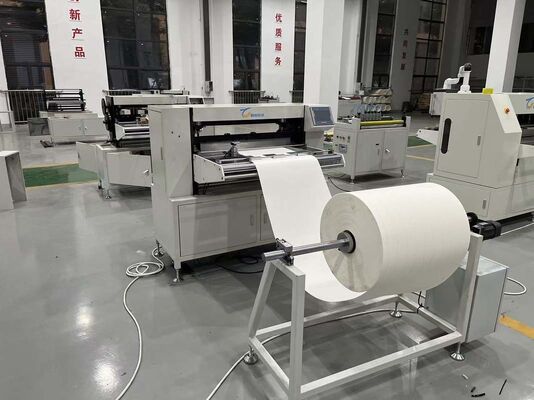

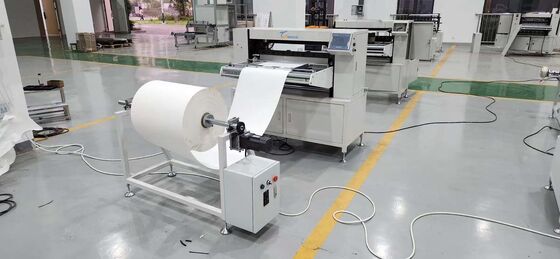

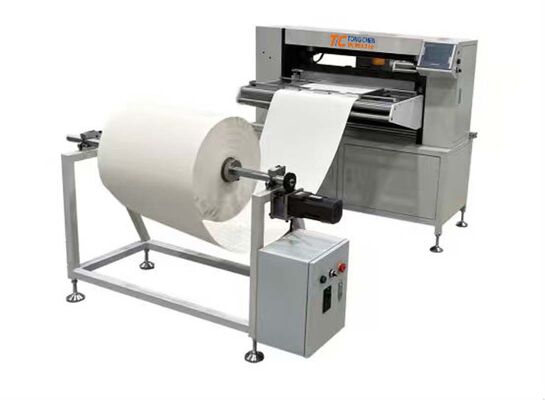

Fully Customized Semi-Automatic Filter Pleating Machine
The sixth-generation fully automatic knife-type pleating production line is engineered for high-speed, precise, and efficient pleating of filter paper. This integrated system combines automatic feeding, pre-cutting, counting, and folding functions into one continuous process, significantly enhancing production efficiency while ensuring consistent product quality. Ideal for automotive filters, air purification filters, and industrial filtration materials.
Fully Customized Semi-auto Filter Pleating Machine Industrial Filtration Solutions and Long-term Operation 0
Technical Specifications
Filter Paper Conveying Machine
Paper Conveying Speed 0.5 m/min - 25 m/min (adjustable)
Adjustable Width of Filter Paper 25 - 850 mm
Power Supply Voltage 220V / 50Hz
Motor Power 0.55 kW
Working Air Pressure 0.6 Mpa
Machine Weight 250 kg
Dimensions (L × W × H) 1280 × 1100 × 1200 mm
Filter Paper Folding Machine
Maximum Product Width 850 mm
Adjustable Folding Height 5 - 100 mm (depending on material)
Folding Speed 0 - 280 folds/min (stepless adjustable)
Power Supply Voltage 380V / 50Hz
Main Motor Power 1.5 kW
Lifting Motor Power 0.4 kW
Preheating Power 6 kW
Temperature Control Range Normal temperature - 260°C
Working Air Pressure 0.6 Mpa
Machine Weight 450 kg
Dimensions (L × W × H) 1800 × 1900 × 1650 mm
Key Features
  • High Cutting Accuracy: Delivers smooth, precise, burr-free cuts with minimal deviation for uniform material dimensions and consistent filter quality
  • Adjustable Cutting Size: Customizable cutting length and width to accommodate various filter types and material sizes
  • Pneumatic-Driven System: Operates with stable 0.6 Mpa air pressure for reliable cutting force, low vibration, and extended component life
  • Compact & User-Friendly Design: Small footprint with simple operation, suitable for both standalone use and integration into automated production lines
  • Durable Structure: Manufactured with high-quality steel components for long-term industrial use under continuous operation
Fully Customized Semi-auto Filter Pleating Machine Industrial Filtration Solutions and Long-term Operation 1
Optional Configurations
  • Custom folding height and speed adjustments
  • Integration with glue spraying systems
  • Optional heating and cooling modules
  • Digital counter and PLC touch control panel
Applications
  • Automotive Air Filters
  • Cabin Filters
  • Industrial Dust Filters
  • Air Purification Filters
  • HEPA Filter Production Lines
Fully Customized Semi-auto Filter Pleating Machine Industrial Filtration Solutions and Long-term Operation 2
Company Profile
Established in 2011, Bengbu Tongchen Automation Technology Equipment CO.,LTD specializes in research, development, manufacturing, marketing and after-sales service for filtration equipment. Our product range includes fully automated reciprocating paper folding production lines, PP intermittent glue injection and wave reception production lines, and paper frame gluing production lines. Contact us for more information or to schedule a demonstration.
Production Packaging
Fully Customized Semi-auto Filter Pleating Machine Industrial Filtration Solutions and Long-term Operation 3 Fully Customized Semi-auto Filter Pleating Machine Industrial Filtration Solutions and Long-term Operation 4
Frequently Asked Questions
Can you give me a discount price?
Discounts depend on order volume. Larger quantities qualify for greater discounts.
How do you guarantee your quality?
Our experienced workers and technical staff ensure product quality. All products undergo thorough inspection by quality control personnel before shipment.
How about your after-sales service?
We provide professional technical support through our dedicated service team, available for online guidance and troubleshooting.
